Mills Model M with hopper payout

Postby sam2002 » Sat Aug 06, 2016 1:05 pm

Are there any Model M gurus on this forum ? I just picked up a Mills model M with an electronic jackpot . All the lights work when plugged in .If I manually depress the the vertical payout switch I hear a click in the black box mounted inside upper portion of the cabinet . Also when this switch is manually held closed I can manually push the counter switch on the hopper and the numbers increase on that same black box mounted to inside top of the cabinet .but that hopper is not turning .Anyway looking for a manual or someone who knows these machines for help on bringing this one back if possible .
Thanks in advance for any assistance
Sam
sam2002

Posts: 488
Joined: Wed Feb 01, 2012 4:45 pm

Re: Mills Model M with hopper payout

Postby sam2002 » Sun Aug 07, 2016 7:02 am

Mills Model M or open front was the predocessor to the full on electromechanical slot machine . This particular machine has only one hopper payout and that is the jackpot payout $8 total jackpot payout . All other payouts are mechanical and the jackpot does payout 20 nickels mechanically . That means the hopper should pay $7 . This being just a single hopper payout machine should make it a little easier of a fix . Less electronic parts. I will post photos later . This is a worthy machine and deserves another chance at life .
sam2002

Posts: 488
Joined: Wed Feb 01, 2012 4:45 pm

Re: Mills Model M with hopper payout

Postby sam2002 » Sun Aug 07, 2016 9:41 am

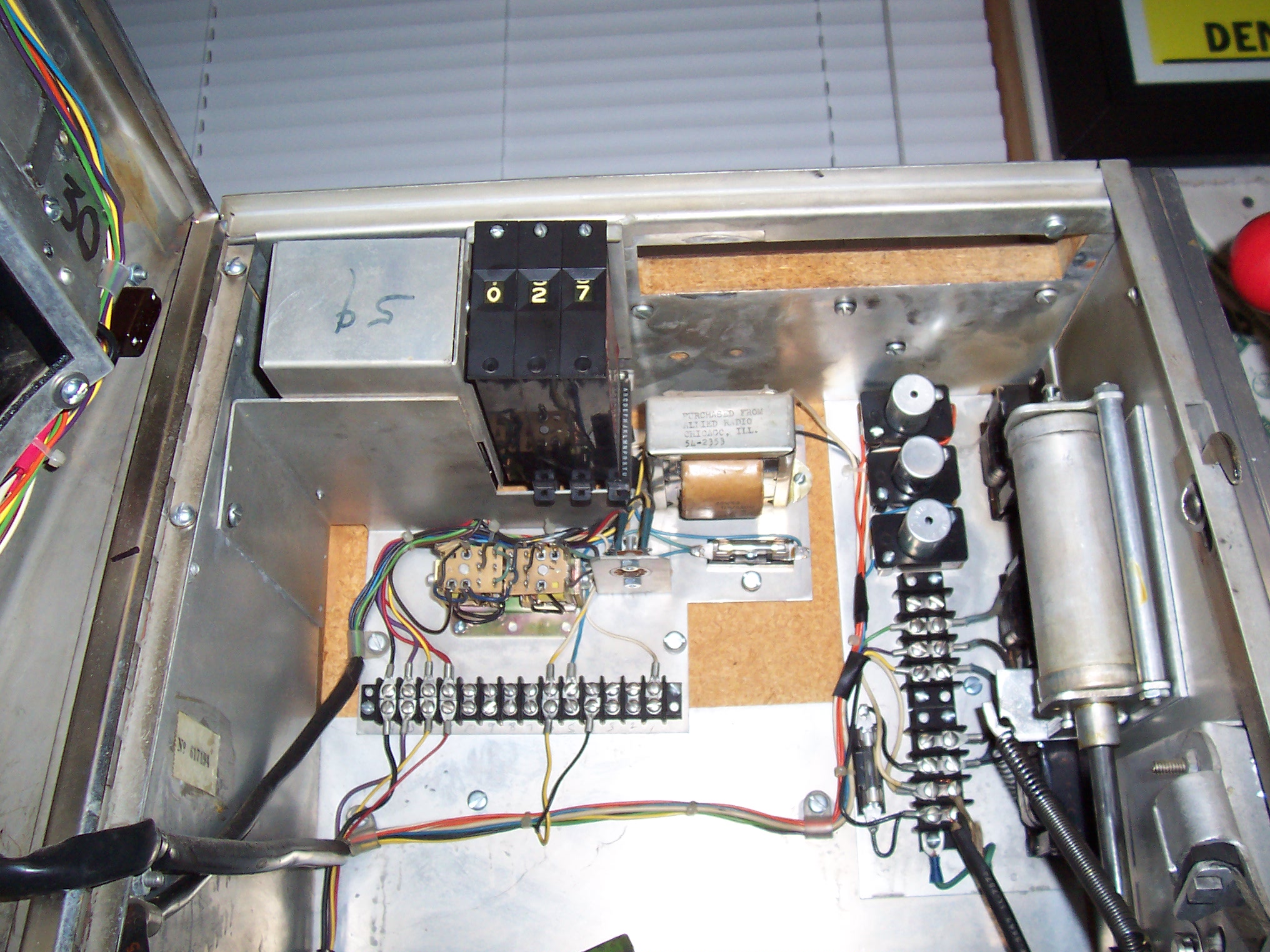

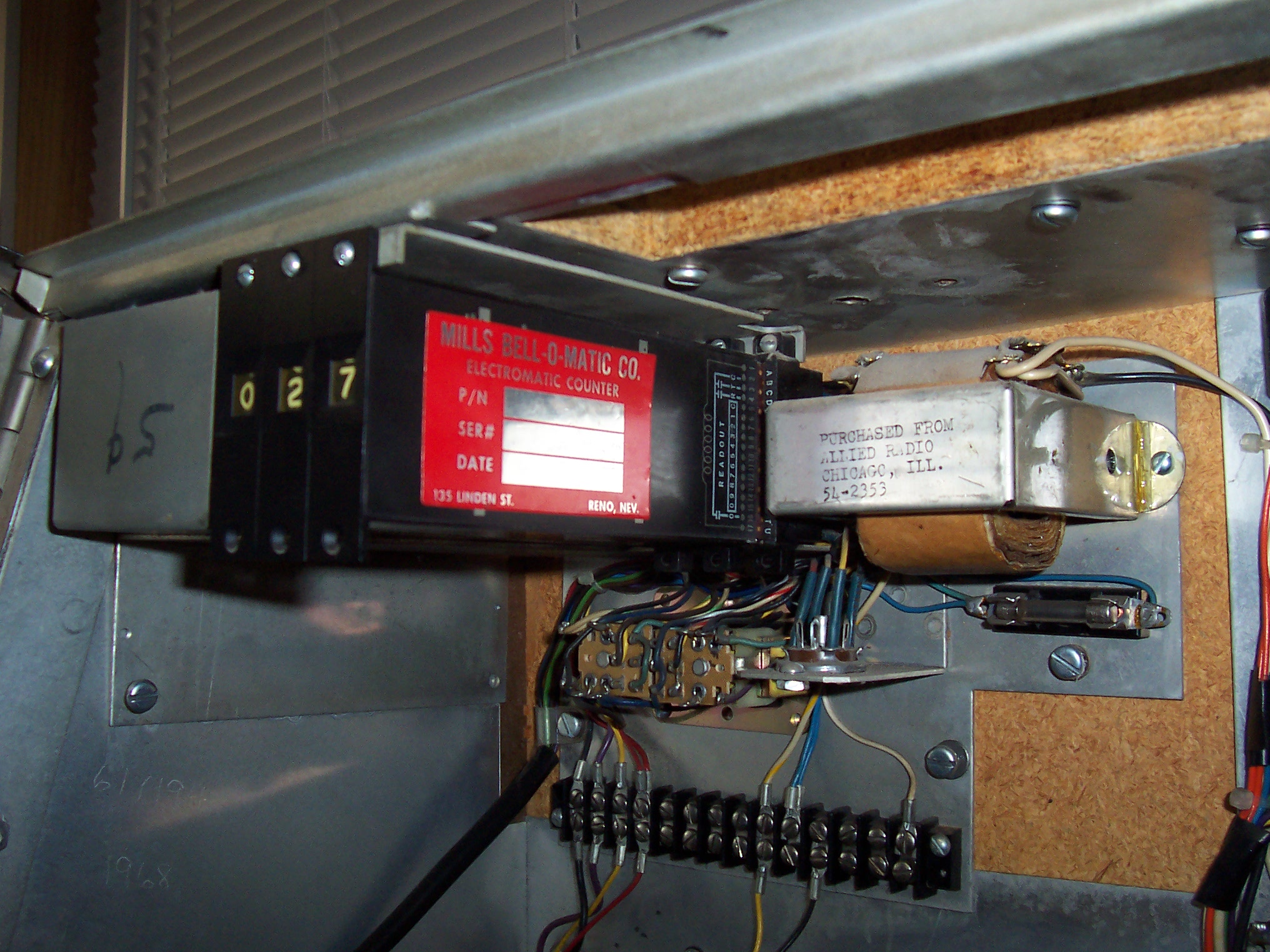

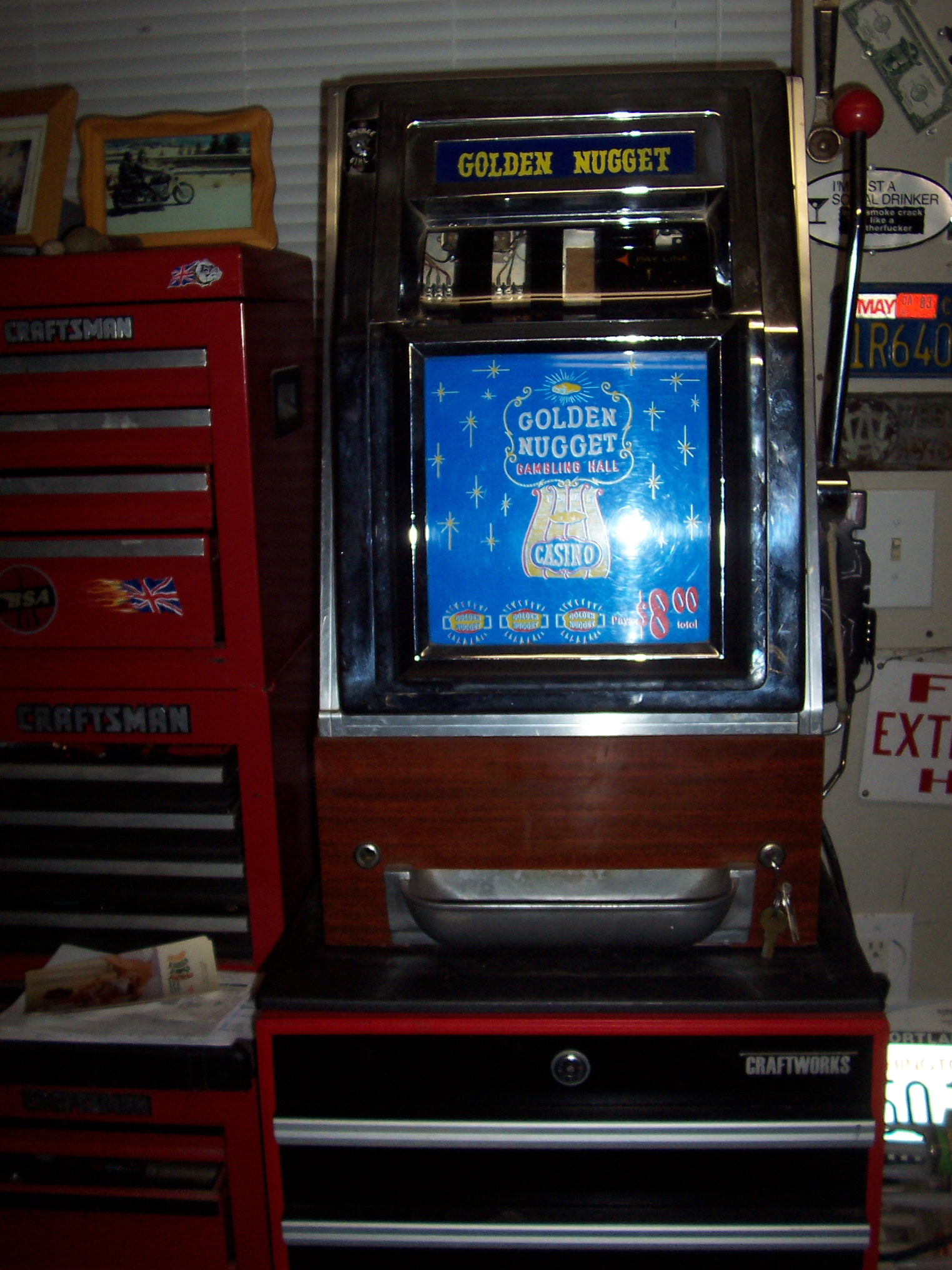

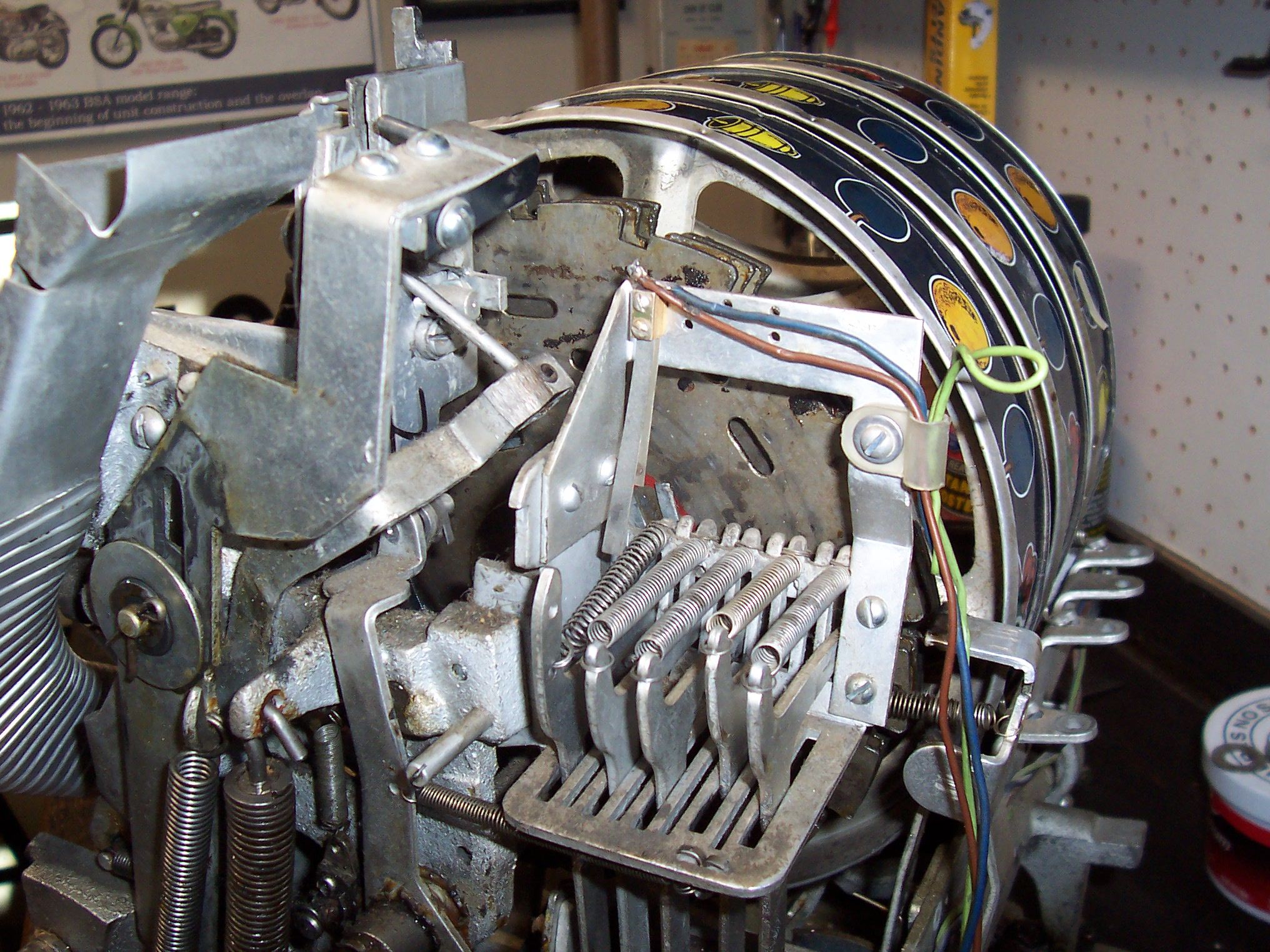

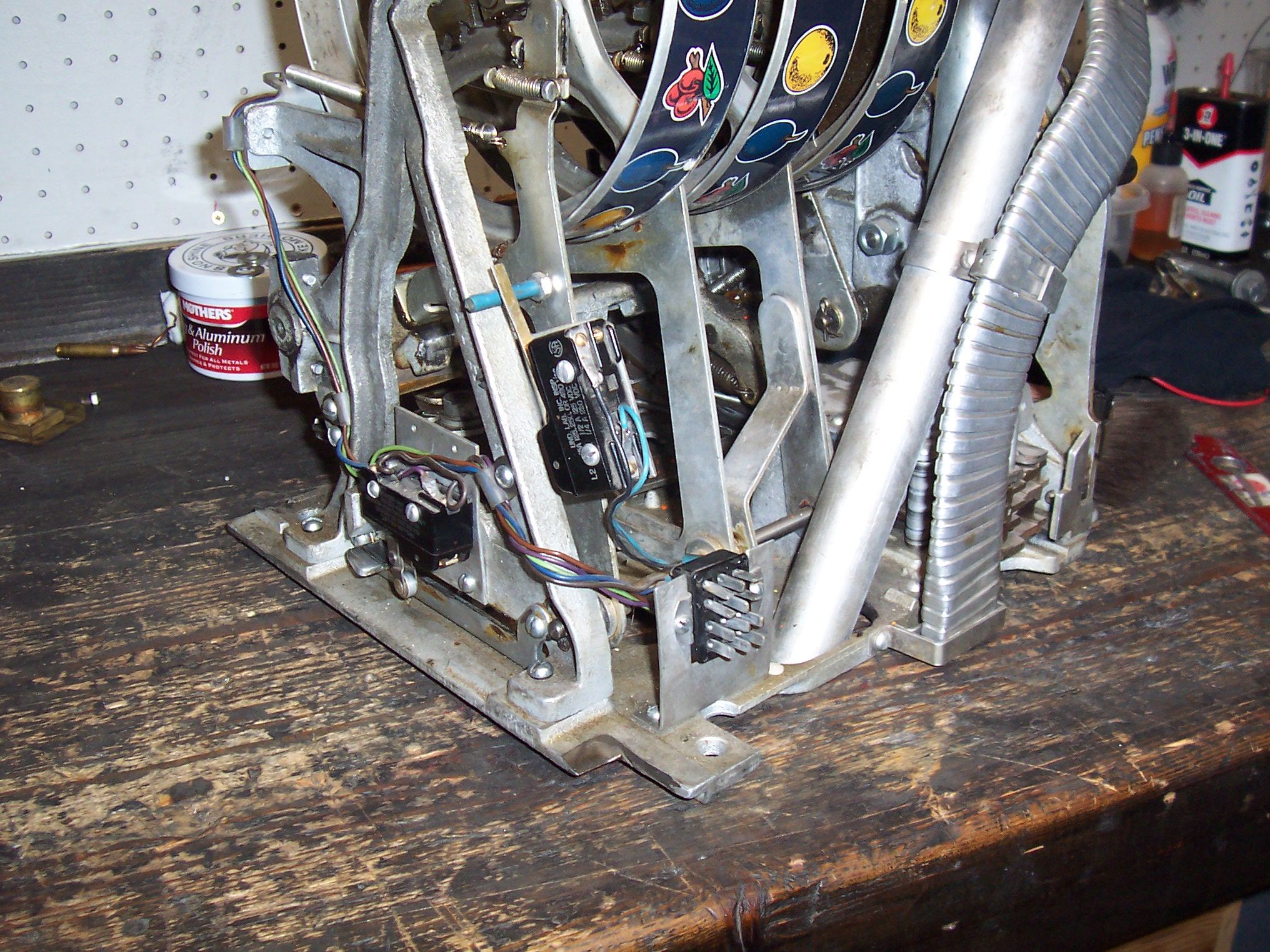

Pictures , it is a Golden Nugget hoping to make it my garage machine .
Attachments
Model M 007.JPG
Model M 006.JPG
Model M 008.JPG
Model M 002.JPG
Model M 001.JPG
sam2002

Posts: 488
Joined: Wed Feb 01, 2012 4:45 pm

Re: Mills Model M with hopper payout

Postby MONTI » Thu Aug 11, 2016 12:20 pm

sam2002 wrote:Are there any Model M gurus on this forum ? I just picked up a Mills model M with an electronic jackpot . All the lights work when plugged in .If I manually depress the the vertical payout switch I hear a click in the black box mounted inside upper portion of the cabinet . Also when this switch is manually held closed I can manually push the counter switch on the hopper and the numbers increase on that same black box mounted to inside top of the cabinet .but that hopper is not turning .Anyway looking for a manual or someone who knows these machines for help on bringing this one back if possible .
Thanks in advance for any assistance
Sam


Hello Out There!
Sam and I have been communicating by email on this particular Mills M-Head slot machine and from information I have gathered this seems to be an after market modification on this particular machine or possibly a casino modification possibly by the Golden Nugget!
As the ones from Mills Bell-O-Matic seem a little more professionally done as in a factory setting!
I have gone thru my slot machine documents and have found nothing from Mills in the way of literature on this slot machine other than the Mills parts and service manual on the early Mills M Head that originally came out without the hopper, I have found nothing on the M Head model that has information on the model with the addition of the hopper and I believe what Sam is looking for is a schematic or wiring diagram for this slot machine.
He had sent me some pictures by email and there is a socket, which to me looks like an old "vacuum tube" socket which on his machine is empty and in our discussions by phone we were wondering if the problem he is experiencing with his machine is due to the component missing in this socket? :roll:

So any information would be appreciated as his searching for answers has also peaked my curiosity as even after 35 years Plus in this hobby I am always seeking new knowledge!

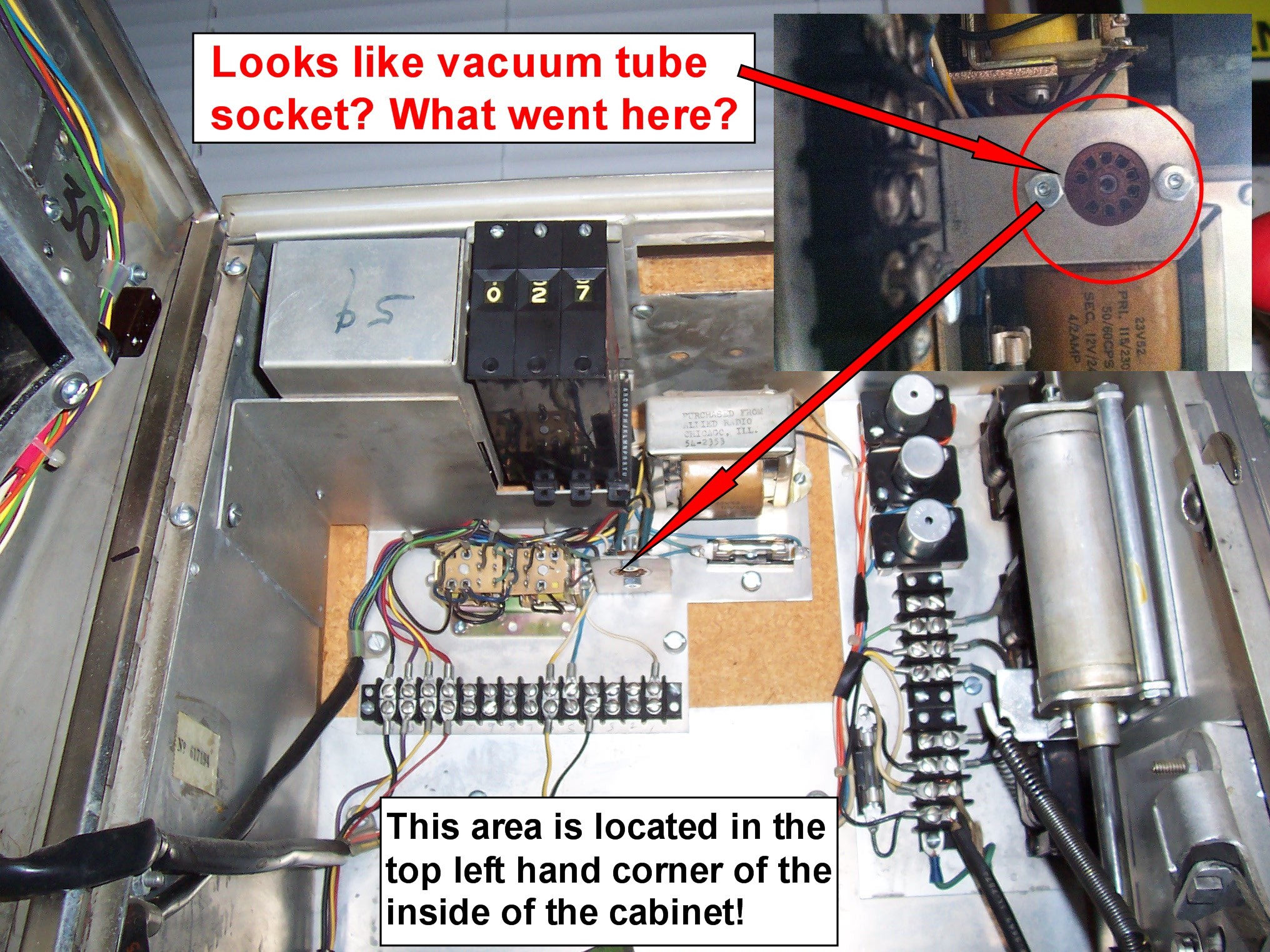

Below is a picture of the the socket in question showing its location in the machine directly under the hopper payout counter on the upper left rear of the cabinet!

Any help would be appreciated! =D>
Ciao,
MONTI

For Forum.JPG
MONTI'S SLOT SHOP
BUY * SELL * TRADE * RESTORE
Over 35 years experience in slot restoration

Serving Northern California, Nevada & Beyond
User avatar
MONTI

Posts: 238
Joined: Sun Nov 07, 2010 6:35 pm
Location: NORTHERN CALIFORNIA

Re: Mills Model M with hopper payout

Postby sam2002 » Thu Aug 11, 2016 1:23 pm

MONTI wrote:
sam2002 wrote:Are there any Model M gurus on this forum ? I just picked up a Mills model M with an electronic jackpot . All the lights work when plugged in .If I manually depress the the vertical payout switch I hear a click in the black box mounted inside upper portion of the cabinet . Also when this switch is manually held closed I can manually push the counter switch on the hopper and the numbers increase on that same black box mounted to inside top of the cabinet .but that hopper is not turning .Anyway looking for a manual or someone who knows these machines for help on bringing this one back if possible .
Thanks in advance for any assistance
Sam


Hello Out There!
Sam and I have been communicating by email on this particular Mills M-Head slot machine and from information I have gathered this seems to be an after market modification on this particular machine or possibly a casino modification possibly by the Golden Nugget!
As the ones from Mills Bell-O-Matic seem a little more professionally done as in a factory setting!
I have gone thru my slot machine documents and have found nothing from Mills in the way of literature on this slot machine other than the Mills parts and service manual on the early Mills M Head that originally came out without the hopper, I have found nothing on the M Head model that has information on the model with the addition of the hopper and I believe what Sam is looking for is a schematic or wiring diagram for this slot machine.
He had sent me some pictures by email and there is a socket, which to me looks like an old "vacuum tube" socket which on his machine is empty and in our discussions by phone we were wondering if the problem he is experiencing with his machine is due to the component missing in this socket? :roll:

So any information would be appreciated as his searching for answers has also peaked my curiosity as even after 35 years Plus in this hobby I am always seeking new knowledge!

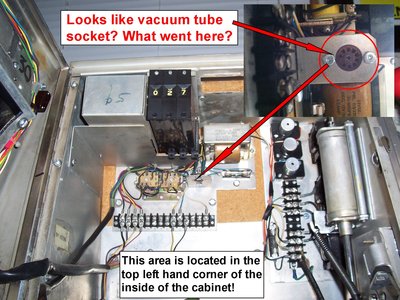

Below is a picture of the the socket in question showing its location in the machine directly under the hopper payout counter on the upper left rear of the cabinet!

Any help would be appreciated! =D>
Ciao,
MONTI

For Forum.JPG


Monti
Thank you for this fine picture of the socket and it's location . I will add that there are only 4 wires that lead out of this socket . It's a nine pin socket that only uses 4 of the holes in the socket . As of this writing I have not traced out where the 4 wires go .
Sam
sam2002

Posts: 488
Joined: Wed Feb 01, 2012 4:45 pm
